Building in Visual Studio Code with a Makefile

6 minute read     Updated:

Nicolas Bohorquez %     Nicolas Bohorquez

Microsoft announced recently a new Visual Studio Code extension to handle Makefiles. This extension provides a set of commands to the editor that will facilitate working with projects that rely on a Makefile to speed up the build.

In this tutorial, you’ll set up a simple C++ project that depends on a well-known Python library to produce some sample charts. This is not a deep tutorial about make and Makefiles, but to get the most out of the extension you will need to have some concepts clear.

Make is one of the most used tools to build software projects, for good reason:

  • You can get an implementation for almost any major operating system (POSIX/Windows/MacOS)
  • It’s technology agnostic. You can use it to build projects on any programming language (here’s an example for JavaScript.
  • Its task runner capabilities provide a multipurpose tool for almost any task.

A Makefile is a simple text file that defines rules to be executed. The usual purpose for Makefile in C++ projects is to recompile and link necessary files based on the modifications done to dependencies. However, Makefile and make are far more useful than that. The rules defined in a Makefile combine concepts like:

  • Shell scripting
  • Regular expressions
  • Target notation
  • Project structure

To illustrate this power, the sample project contains a single C++ source code file. The source code for the example is pretty simple —- it flips a coin as many times as the iters argument is passed, and then prints the number of heads and tails counted from each flip.


#include <cstdio>
#include <cstdlib>
#include <stdlib.h>
#include <assert.h>
#include <time.h>

int flip_coins(int iters) {
  srand (time(NULL));
  int heads, tails = 0;

  for(int i=0;i < iters;i++){
   (rand() % 10 + 1) <= 5 ? heads++ : tails++;
  }
  printf("%d Heads, %d Tails\n",heads, tails);
  return abs(tails-heads);
}

int main(int argc,char* argv[]) {
 assert (argc == 2);
 int iters = atoi(argv[1]);
 int diff = flip_coins(iters);
 if(100 < iters) {
      printf("With enough trials Heads should be equal to Tails\n");
 }
}

This code will be compiled and linked with a simple Makefile that also will provide a couple of other standard rules for cleaning the compiled code and run a simple test.

Creating C++ Projects with VS Code

The VS Code extension Makefile Tools is still in preview but is actively developed. The installation process is similar to any other extension in VS Code:

Makefile VSCode extension

After installing the extension, verify the availability of the make command in the system.

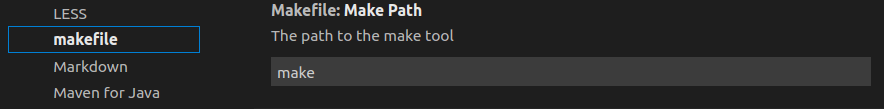

The most common implementation is GNU Make, which includes some non-standard extensions. If your installation of make is not available in the default path, you can configure it in VS Code at File > Preferences > Settings > Extensions makefile.

Make path

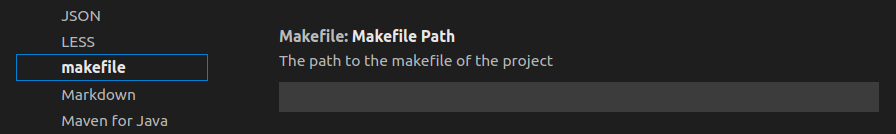

To compile and link the project, you can add a Makefile to the root of the project folder. It will be detected automatically by the extension. If you have a different structure, with a Makefile in another location, you can configure it at File > Preferences > Settings > Extensions > makefile.

Makefile path

This sample Makefile defines five simple rules:

  • all: Cleans the compiled files from the target folder, then compiles and run the test code.
  • default: Delegates to CoinFlipper.cpp.
  • CoinFlipper.cpp: Compiles the single source file.
  • test: Delegates to CoinFlipper.cpp, then runs the output main function passing an argument.
  • clean: Deletes compiled files.
#
# A simple makefile for compiling a c++ project
#
SRC=./src
TARGET=./target
GCC = g++
CFLAGS = -o $(TARGET)/CoinFlipper.out
ARGS = 101
RM = rm -rf

all: clean default test

default: CoinFlipper.cpp

CoinFlipper.cpp:
    $(GCC) $(CFLAGS) $(SRC)/main/CoinFlipper.cpp

test: CoinFlipper.cpp
    $(TARGET)/CoinFlipper.out $(ARGS)

clean:
    $(RM) $(TARGET)/*.out

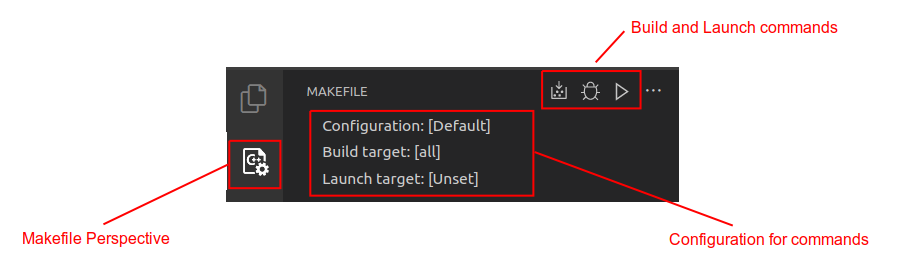

The Makefile Tools Extension provides a new “perspective” to the Visual Studio Code IDE. This contains three different commands and three different project configurations to run the Makefile:

Makefile tools perspective

The Configuration:[Default] refers to the make command configurations defined in the .vscode/settings.json file. This configuration is used to pass arguments to the make utility.

In the following example, two configurations are defined:

  • Default
  • Print make version

Print make versions adds the --version argument to the make utility every time the project is built using the Makefile extension. This argument is not especially useful but you can explore different arguments to fit your case.

{
 "makefile.configurations": [
     {
         "name": "Default",
         "makeArgs": []
     },
     {
         "name": "Print make version",
         "makeArgs": ["--version"]
     }
 ]
}

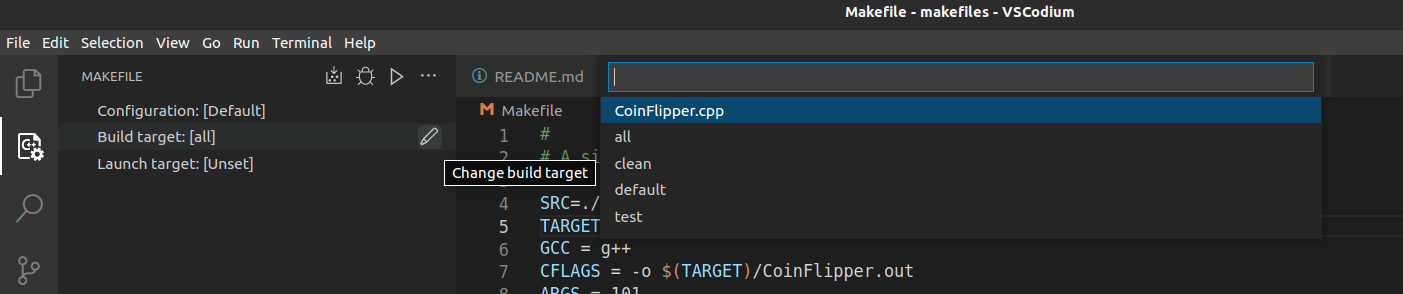

The second configuration is the default build target rule for the make utility, which is equivalent to running make [target] directly. The IDE will let show you a list of target rules defined in the Makefile configured for the project:

config build target

Finally, the third configuration available in the perspective is the Launch target. This shows you a list of compiled files that can be run from the perspective using the commands Debug and Run. This is useful if you want to debug your source code with GDB or LLDB debuggers.

In this example, the only file runnable is CoinFlipper.out, compiled from the source code.

make launch target

The commands in the Makefile are self-explanatory:

  • Build runs make with the target configured previously.
  • all instead of default passes no arguments to the make utility.
  • Debug and Run in terminal commands launch the target (CoinFlipper.out in the example) with/without the debug support.

Once you build the project, the terminal view shows the result of the execution:

Building target "all" with command: "make all"
rm -rf ./target/*.out
g++ -o ./target/CoinFlipper.out ./src/main/CoinFlipper.cpp
./target/CoinFlipper.out 101
50 Heads, 51 Tails
With enough trials Heads should be equal to Tails
Target all built successfully.

As you can see from the previous image, the target was built successfully after cleaning, compiling, and running the compiled program. The extension also provides commands to run other targets easily without changing the configurations in the perspective.

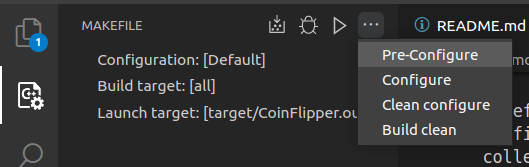

The following image shows the commands available for the Makefile in the sample project:

The makefile commands palette.

Building Complex Projects

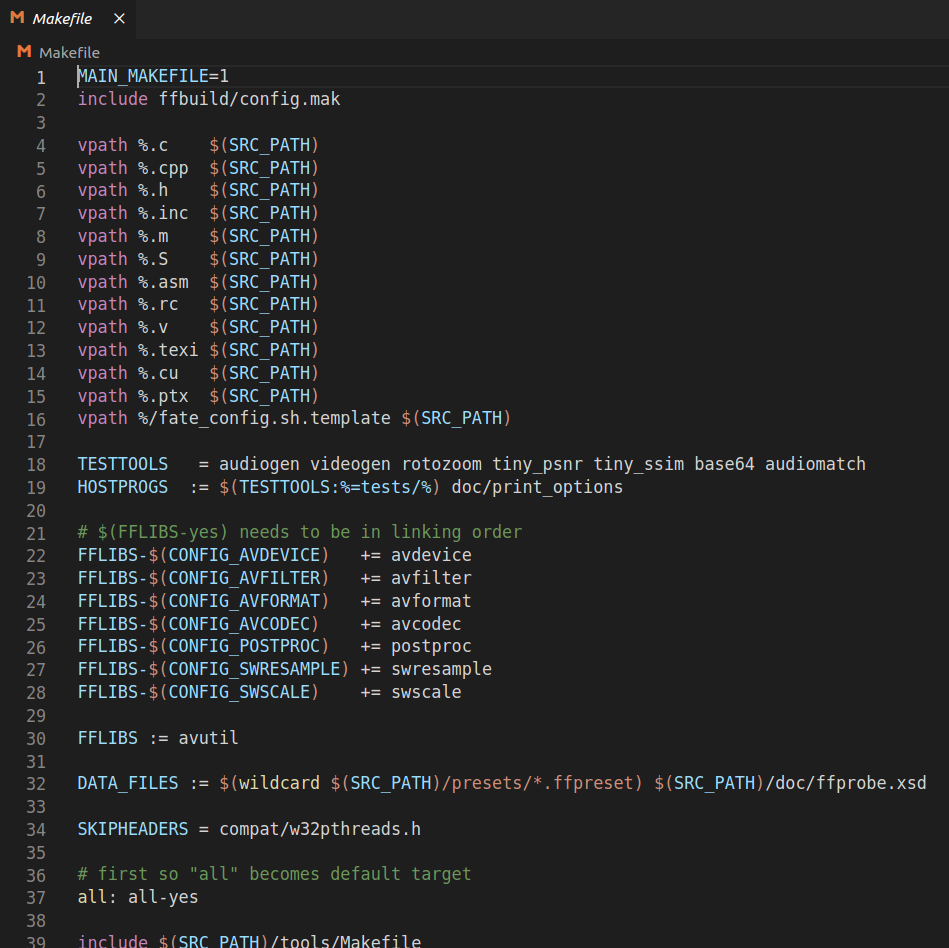

Makefiles are more complex than this. Many projects have several levels of dependencies, configurations, and quirks that make supports easily. For example, the FFmpeg project is a collection of libraries to work with audio, video, and subtitles among other utilities. To build it, you can download the source from GitHub and examine the Makefile:

The makefile for FFmpeg.

The developer documentation for the project states that before building the source code with the provided Makefile, you need to run the configure script located at the root of the project’s source code. Fortunately, the Makefile Tools Extension provides a setting to define the preconfiguration files required to run before executing the make commands, again in File > Preferences > Settings.

The makefile preconfiguration.

In the Commands section of the Makefile Tools Extension perspective, you can run the preconfigure command. This will run the configure script, and then you’re ready to experiment with the Makefile through the extension.

Conclusion

Large codebase projects need a build system to keep them under the development team’s control, and Makefiles are one the most ubiquitous and flexible ways to define building these complex software projects.

With the new Makefile Tools Extension, Visual Studio Code greatly simplifies access for new developers. Though it is still tagged as in preview, this extension has been thoroughly tested by the Microsoft Team, building over seventy open-source projects written in different languages (including C, C++, and Python) successfully.

If you want to learn about the power of make and Makefile, consider checking out the Makefile Tutorial, and if you want the simplicity of a Makefile with the isolation of containers take a look at Earthly.
